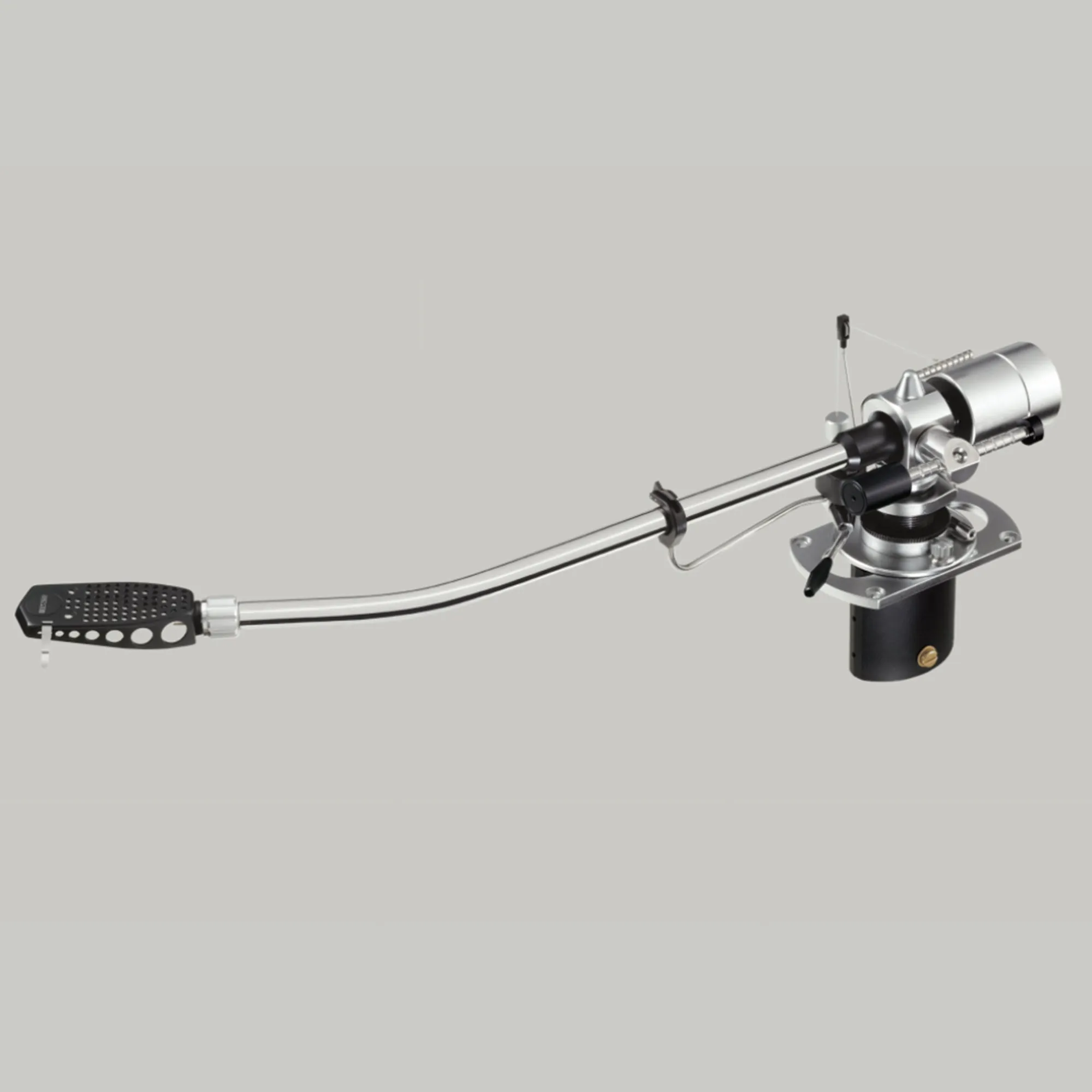

The Model M2-12R precision tonearm is an extension of our popular Series M2 range offering optimum cartridge choice with minimal tracking error and harmonic distortion associated with a 12 inch tonearm.

Classic looks and meticulous build quality the M2-12R offers all the most important features of traditional ‘J’ shaped tonearm, detachable aluminium headshell with azimuth adjustment, two stage tungsten counterbalance system, height adjustment by thumb wheel, superb quality ball race bearings and a level of rigidity to suit all types of cartridge.

Build
The 12in construction with thin walled stainless steel tone-arm takes advantage of the reduction in maximum tracking error/distortion afforded by the greater arm length when compared with 9in models. S2-R Aluminum shell detachable and interchangeable without disturbing cartridge or wiring.

Double draw-in pin bayonet fitting design ensures a rigid junction with the tone-arm.

Unique headshell to tone-arm coupling readily allows cartridge azimuth adjustment.

Stainless steel cross shaft, ground and thread ground. Carried in a substantial yoke on 10mm precision ball races.

Stainless steel vertical shaft, ground and thread ground, with integral 16mm diameter flange to couple shaft and yoke.

23mm diameter steel pillar, heat treated, ground and honed, carries two 17mm precision ball races, widely spaced to resist tilt.

Internal wiring in silver litz.

Damping
Internal constrained layer damps minute residual vibrations making tone-arm acoustically inert.

Adjustments
Anti-skate control operates through Anti-Skate weight and filament, adjustable up to 5g VTF.

Lowering/raising control gives smooth positive action. Height of lift can be adjusted.

Thumbwheel (Vertical tracking angle VTA) height adjustment.

Bedplate affords /- 12.0mm movement to facilitate (Horizontal tracking angle HTA) adjustment.

Base slides on bedplate for horizontal tracking adjustment with double null-point protractor.

Tungsten-alloy balance weight inserts allow maximum centre of gravity shift to balance a greater range of cartridges up to 38g in S2-R headshell and direct plug-in heads up to 46g.

Precise vertical tracking force up to 5g applied in 0,5g increments via rider weight and graduated wayrod.
