Introducing the MATCHFIT U-Pad Clamps—an innovative dovetail clamping solution for the MATCHFIT Dovetail Track System, designed to eliminate workspace obstructions while delivering precise, versatile clamping.

Ideal for a wide range of work-holding setups, these low-profile clamps offer exceptional flexibility, allowing you to route custom dovetail tracks using a standard 14° by 1/2" dovetail router bit. Whether you're working with jigs, fixtures, or on a MATCHFIT clamping table, these clamps provide the secure hold-down support you need.

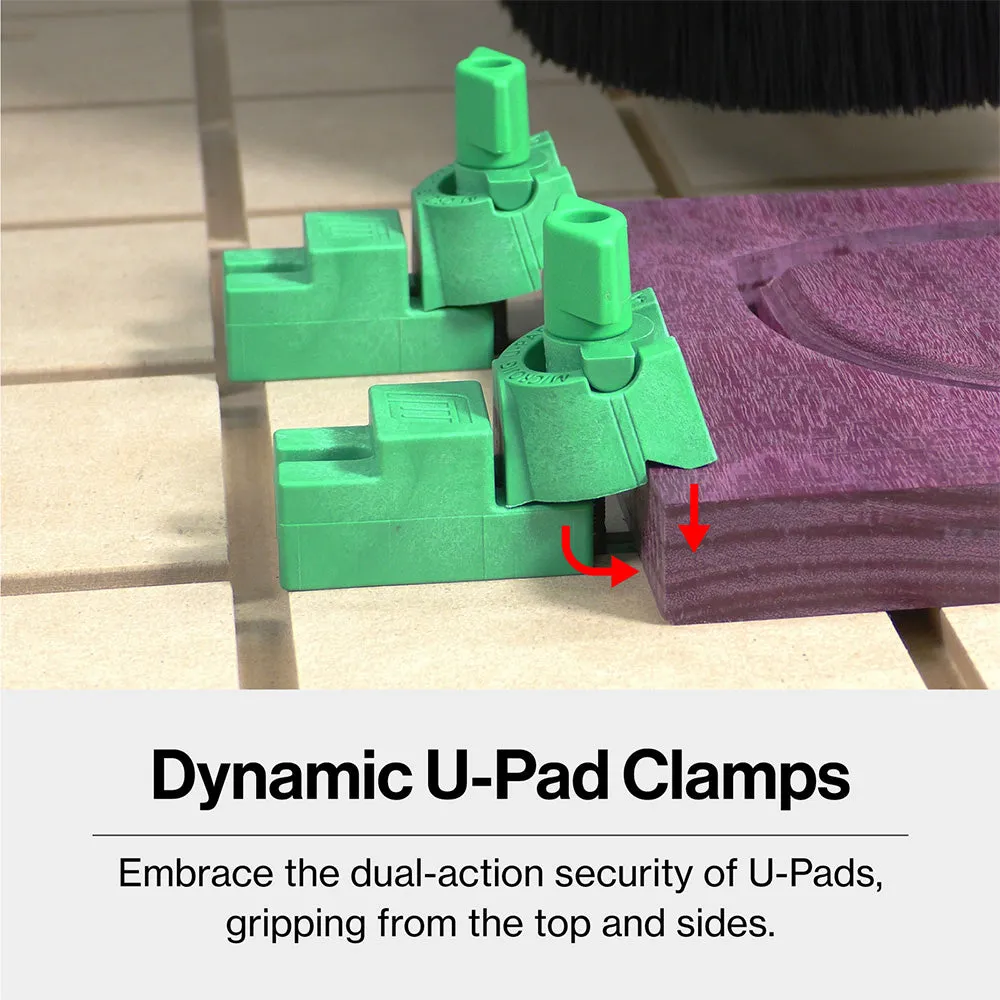

With the MATCHFIT U-Pad Clamps, you can clamp parts along the top and side edges simultaneously, a major advantage over bulky traditional clamps that are limited to dog holes or costly T-tracks. The U-Pad Clamps are engineered for superior pressure application with a simple twist of the knob, capable of holding materials from as thin as 1/16" (1.5mm) to as thick as 1-1/8" (28.5mm). An included step riser block makes it easy to clamp thicker materials for glue-ups, routing, sanding, or assembly.

Works with grooves created by a 14° x 1/2" dovetail bit, such as the . Also available with other clamps and hardware in the .

[TABS]

Features

• Precision Hold-Down: Secure materials with pinpoint accuracy along a 14° by 1/2" dovetail track, ensuring a strong hold without getting in the way.
• Versatile Workholding: Clamps materials as thin as 1/16" and as thick as 1-1/8", perfect for a variety of applications including routing, sanding, and milling—no tools required for setup.

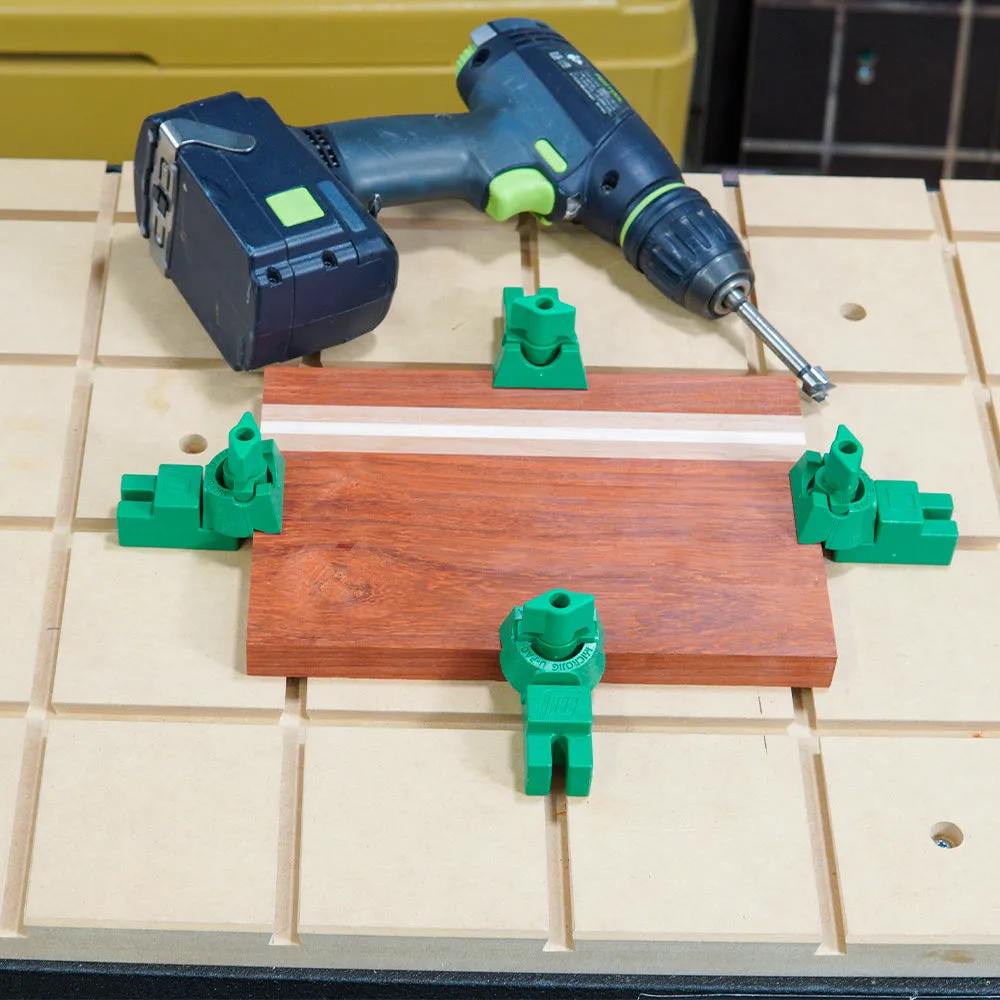

• 360° Clamping: Low-profile design grips materials from all sides, making it ideal for sleds, workbenches, CNC setups, and custom jigs or fixtures.
• Dovetail Tracks Anywhere: Slides freely along custom dovetail tracks, offering flexibility that traditional dog holes and expensive T-tracks can't match.
• Built-In Fence for Stability: Keeps materials locked in place during cuts, ensuring superior control and precision for every project.
• Trusted Worldwide: Join woodworkers around the globe who depend on the MATCHFIT Dovetail Track System for innovative, versatile, and reliable work-holding solutions.

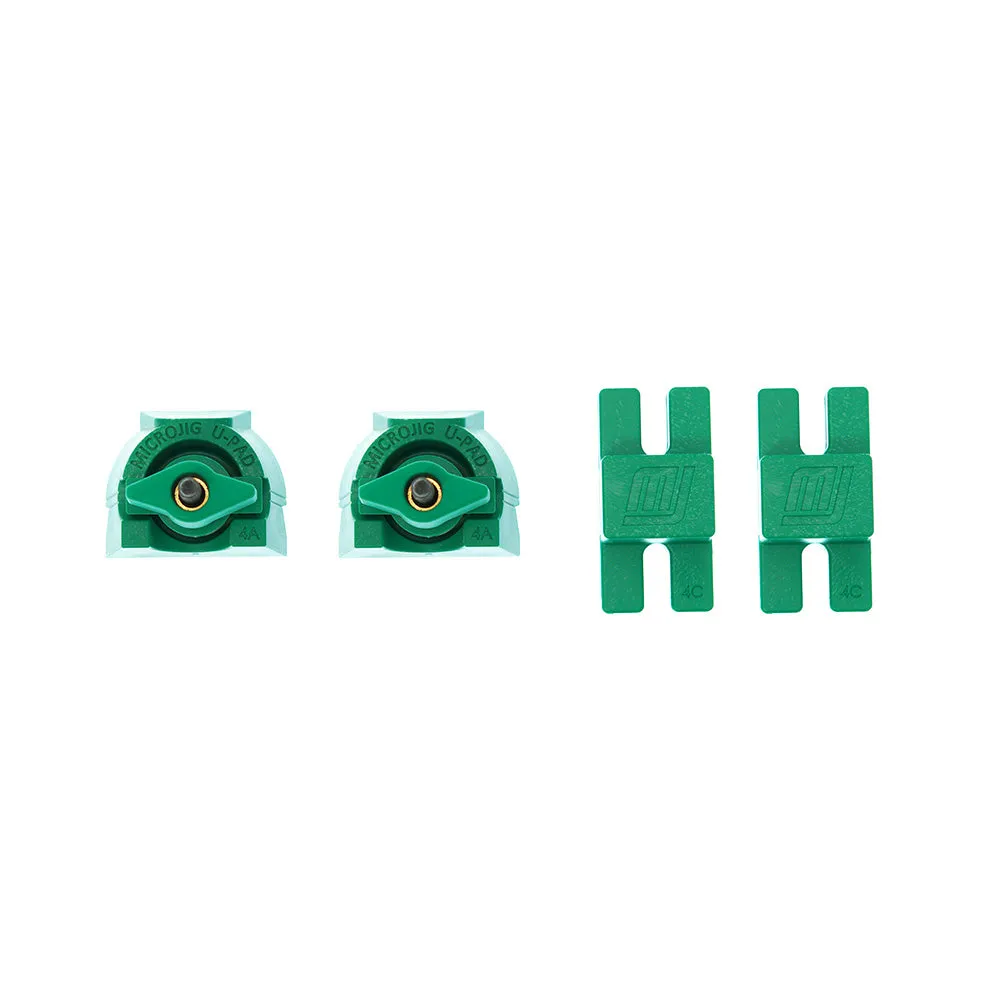

Includes

• (2) U-Pad Bases Part 4A
• (2) U-Pad Screw Adapters Part 4B
• (2) U-Pad Blocks Part 4C
• (2) Dovetail Track Screws 2"
• (2) 10-32 Wing Knobs
