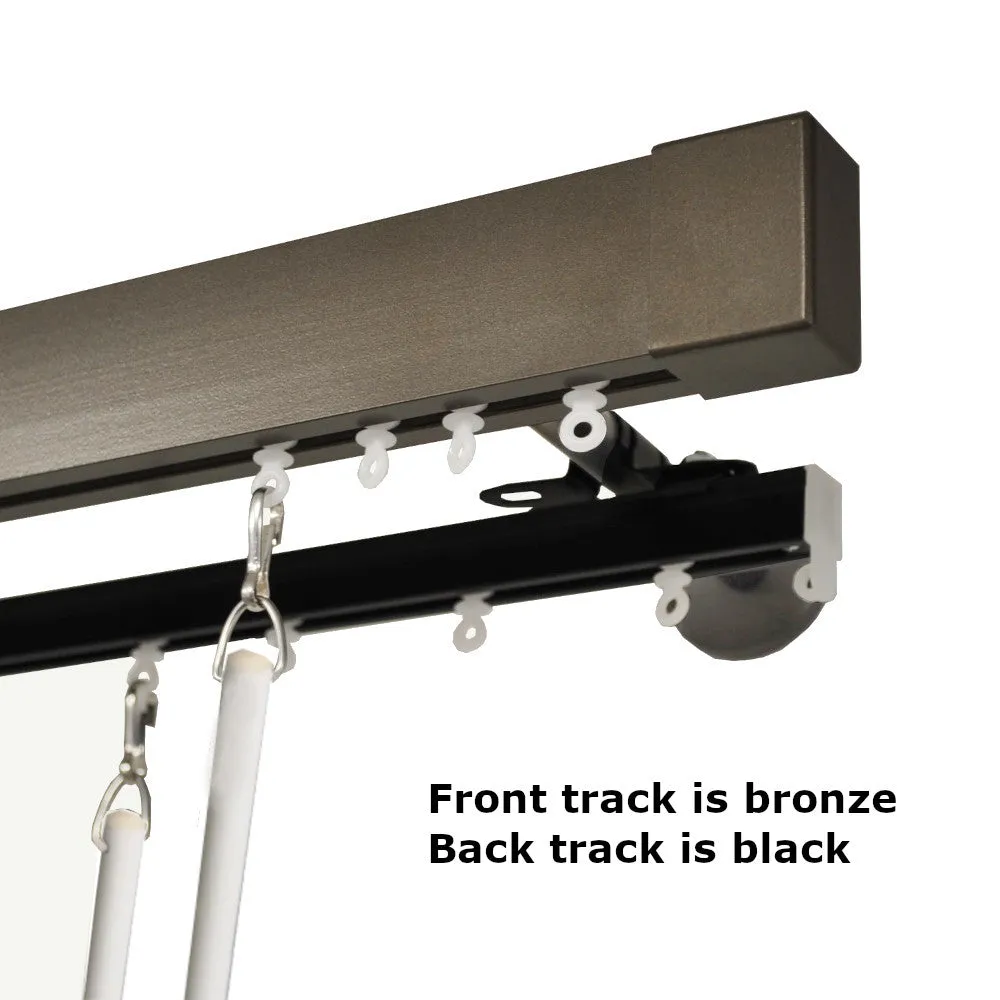

The bronze Kontur track has a black Euro track on the back.
For a wall mount, the bottom of the back Euro track hangs 1/2" below the bottom of the front Kontur track.

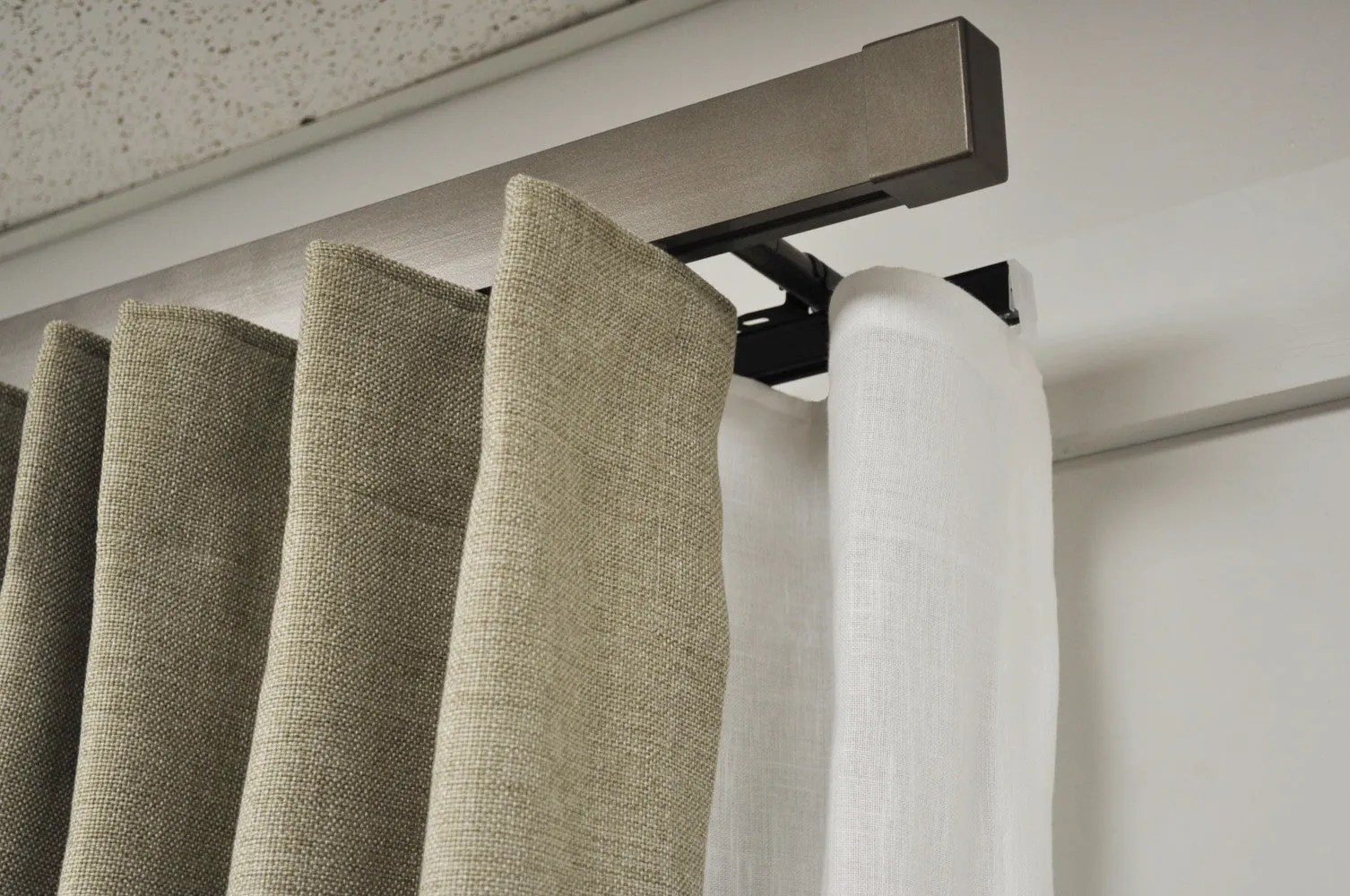

For a ceiling mount, the bottom of the back Euro track hangs 3/4" higher than the front Kontur track.

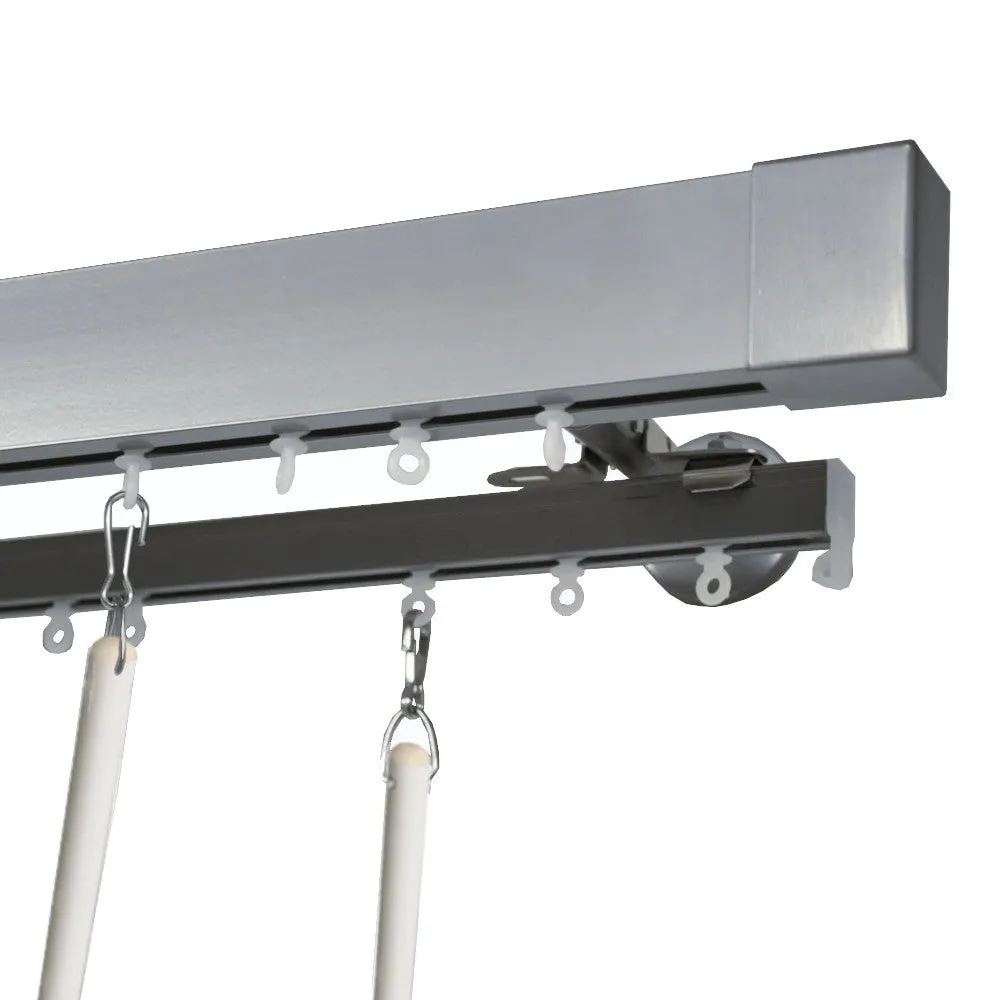

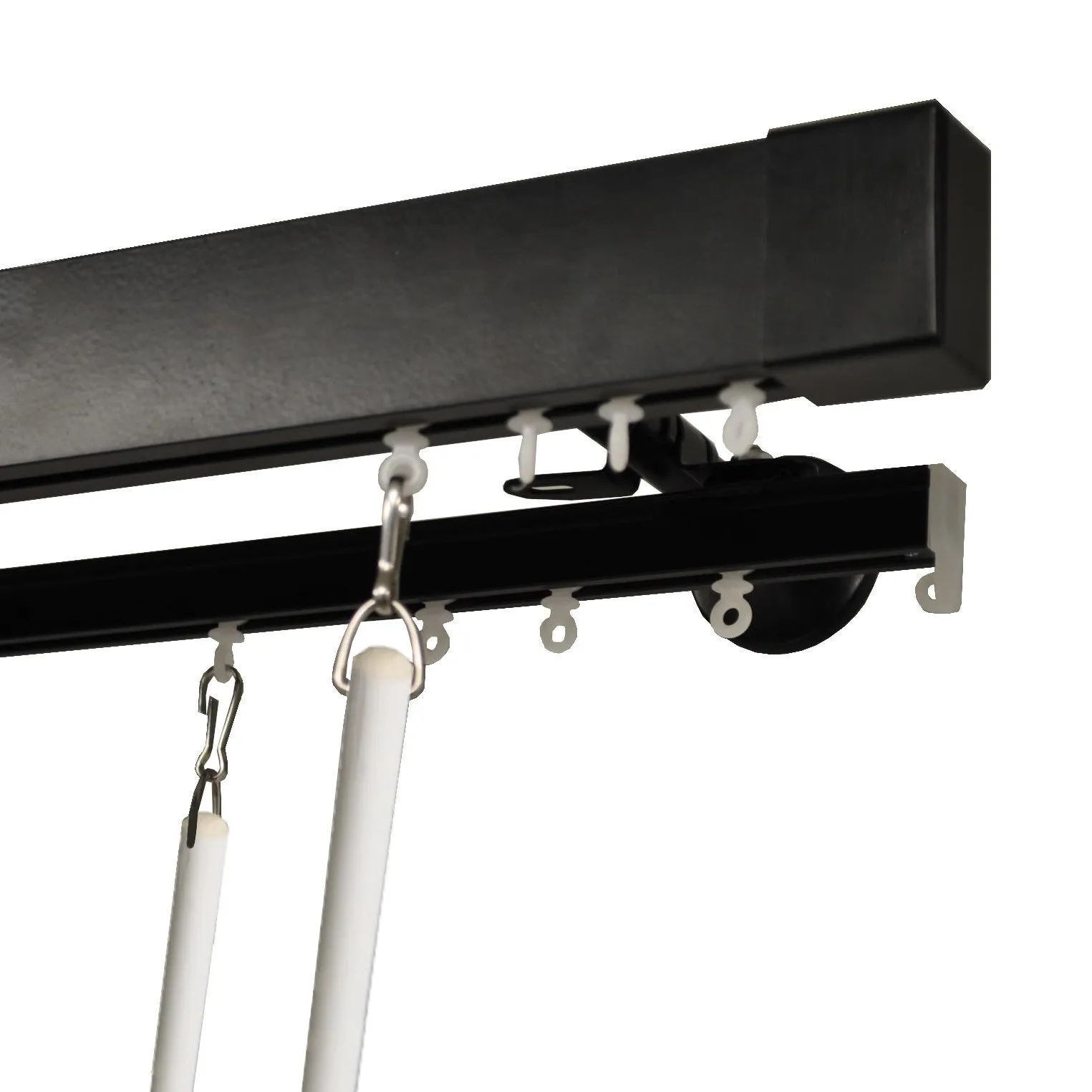

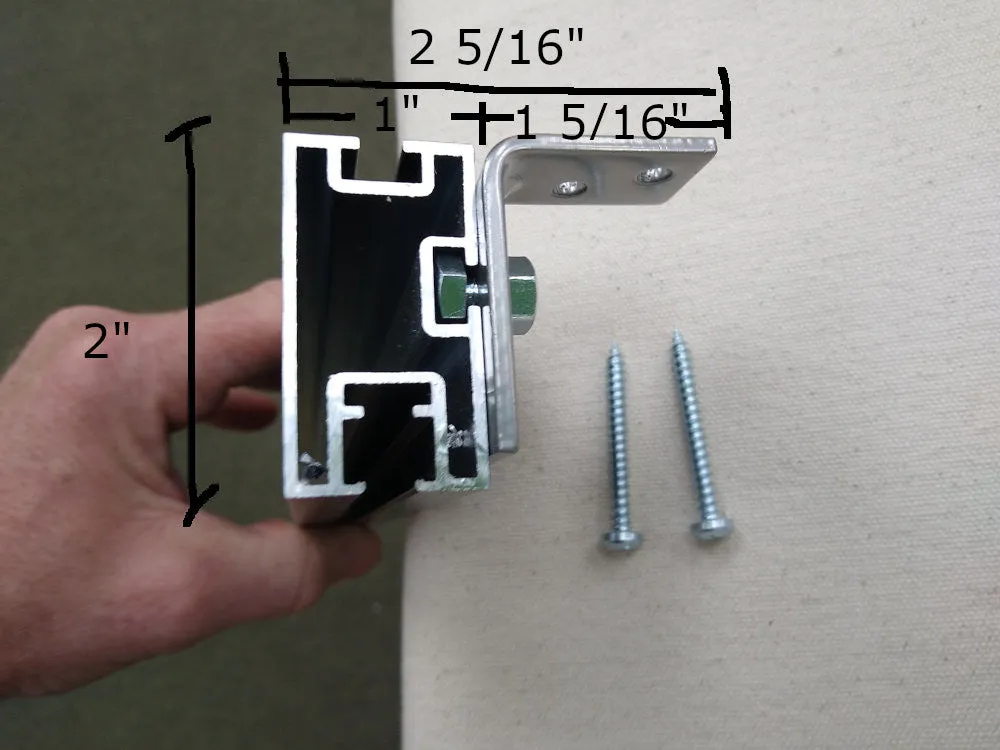

Kontur aluminum double curtain track system. Contemporary 2" tall by 1" deep track on the front with smaller Euro track, 3/4" tall by 5/8" deep on back.

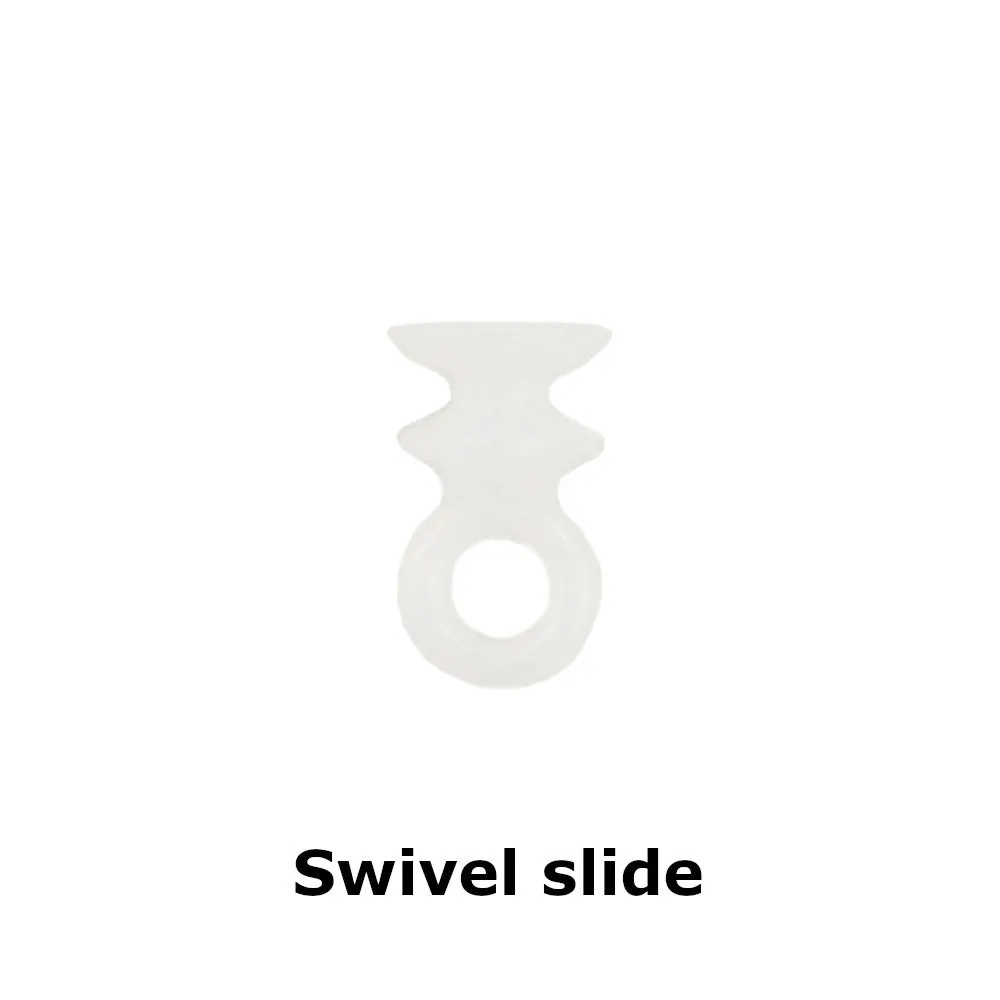

Includes decorative wall mount brackets, if wall mount is selected. For ceiling mount, the front Kontur track uses hidden ceiling brackets and the back Euro track has its own ceiling brackets. They mount separately to the ceiling. Mount the back track 2"-2 1/2" from the wall and the front track 5"-6" from the wall. Slides are provided (3 1/2 per foot) and 4 white fiberglass batons.
See ourfor the carrier styles and how to use them.
The track is rated at 4 lbs per foot; for example, a 10 ft. track will hold a maximum of 40 lbs. each track. Be sure your brackets are securely mounted.
The end caps will add 3" total (1 1/2" for each) to the cut size that you specify. Ie., if you enter a cut size of 126", the overall width of your rod including the end caps will be 129".

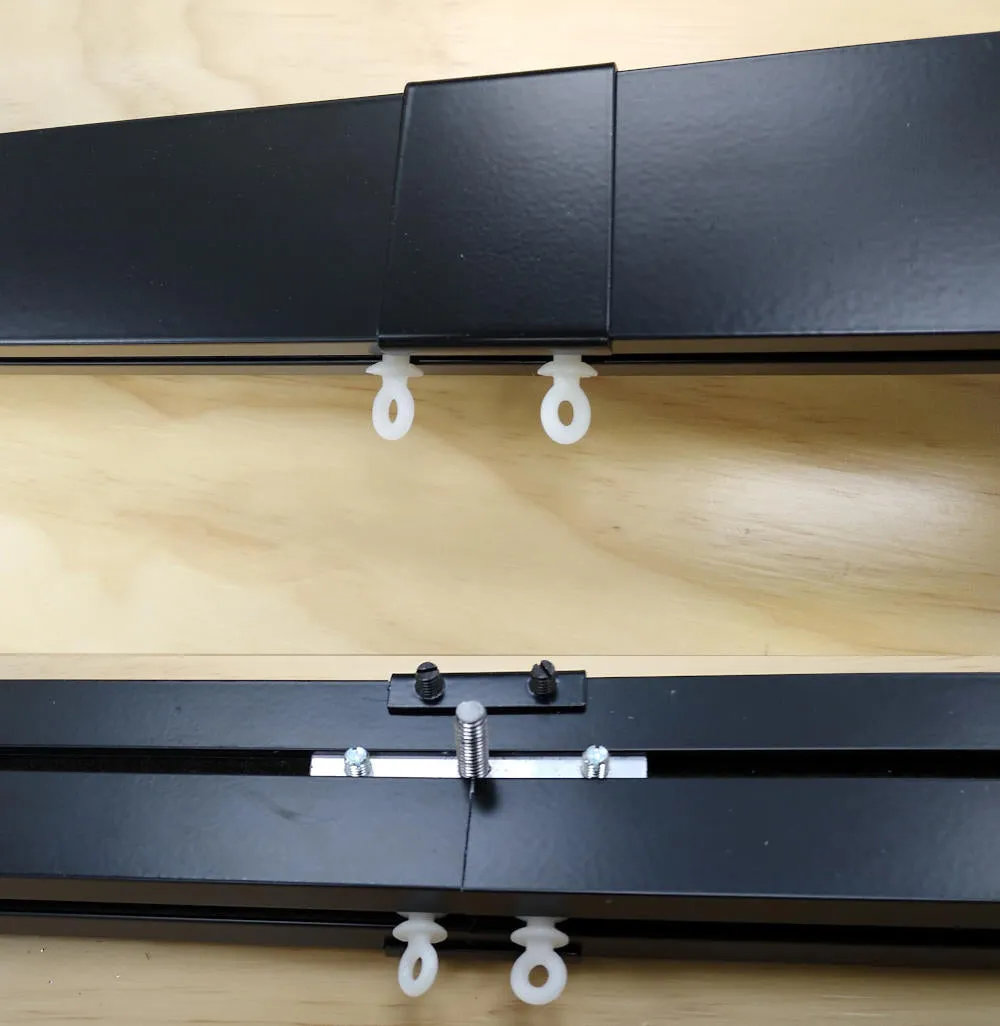

Longer rods ship in multiple sections with hidden interior splices and decorative seam cover caps.
Since this is a baton draw, you can use one panel as a one-way draw, two panels as a split draw, or multiple panels and draw them in any direction desired.

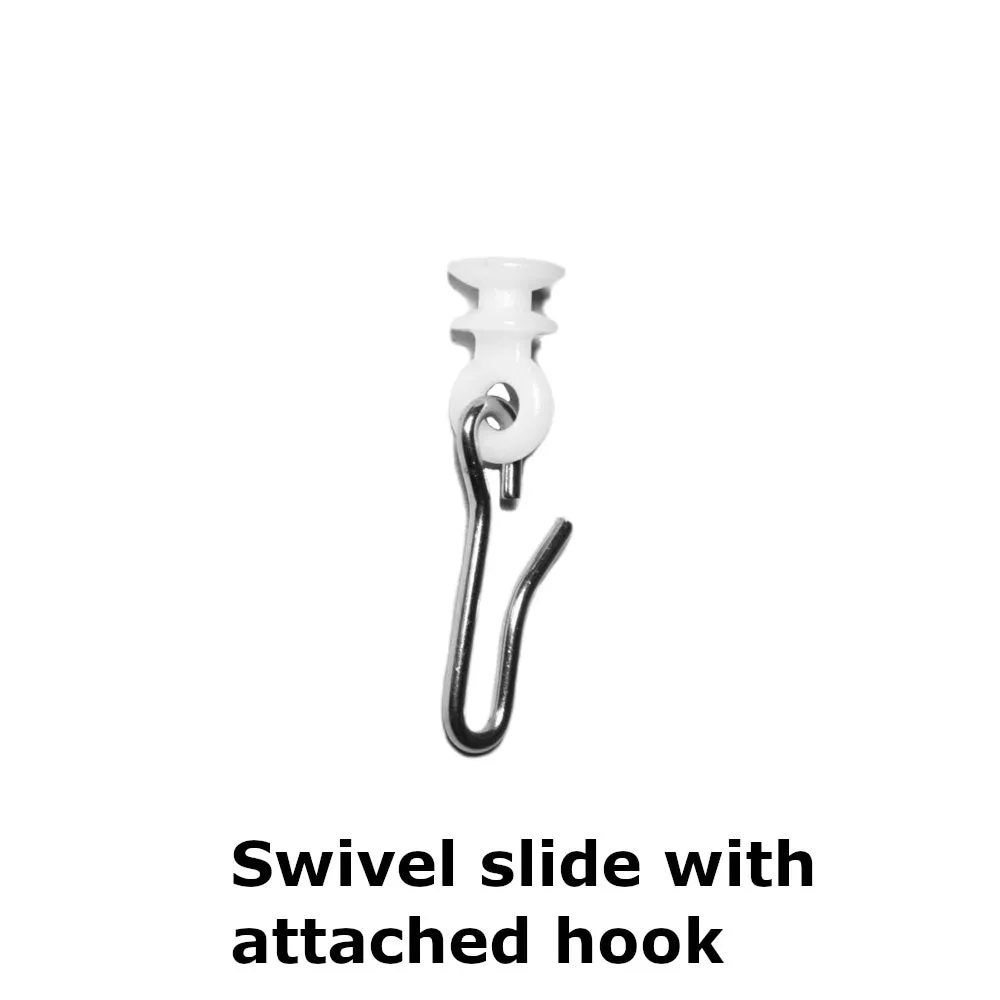

Suitable for our , pleated draperies with pin hooks, or you can use for grommet curtains. See for what we have available. If making your own, you can order and separately. If you select wavefold carriers, please view the links on the to learn more.
If Wavefold carriers are selected, you will receive the following quantities. This will often be more than required. Cut the string to remove the excess.
(60"-28)(84"-48)(95"-48)(108"-60)(132"-72)(156"-80)(180"-96)(204"-120)(228"-120)(252"-144)(276"-144)
